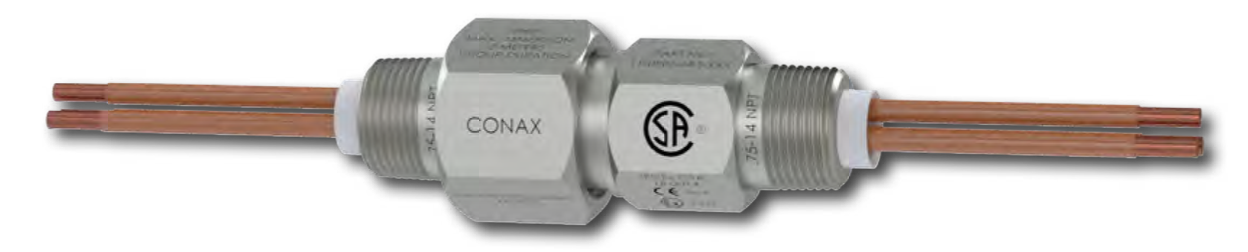

Hazardous Location Power Lead Feedthrough (HLPL)
CSA™ Certified in the U.S. and Canada with a Pressure Rating of 725 PSIG
HLPL power lead fittings provide pressure/vacuum sealing on Kapton™ insulated solid leadwires. HLPL glands seal against gasses and liquids, resist element movement under pressure.
Features
- Pressure rated to 1500 PSI max, NPT threads only
- Suitable for gas or liquid
- GraFoil™ sealant
- Teflon™ sleeves to protect wires from damage as they exit either end of feedthrough
- 316/316L SST body and 303 SST B cap, different SST grades to minimize potential galling issues
- Supplied with 18” (minimum) leads on both sides, contact factory for longer lengths
- Additional mounting options may be applied per specific customer application. Consult factory for details.
CSA™ is a trademark of Canadian Standards Association™
GraFoil™ is a trademark of NeoGraf Solutions™
Teflon™ is a trademark of The Chemours Company™
