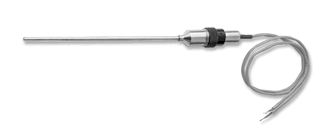

Conax Multiple Quick Disconnect
Catalog Type MQD
Multiple Quick Disconnect assemblies are available for E, J, T and K calibrations. This six-pin configuration is polarized for each thermocouple type to eliminate sensor mismatch. The plug and receptacle use base metal thermocouple contacts, molded and staked in phenolic inserts. The plug is brazed to the thermocouple probe and filled with epoxy. The receptacle features insulated twisted shielded pair conductors. When mated, the connector is waterproof. The termination and sensor sheath are supplied as an integral unit.
Example: E-SS25-2U-MQD-MK250A-12.00″
