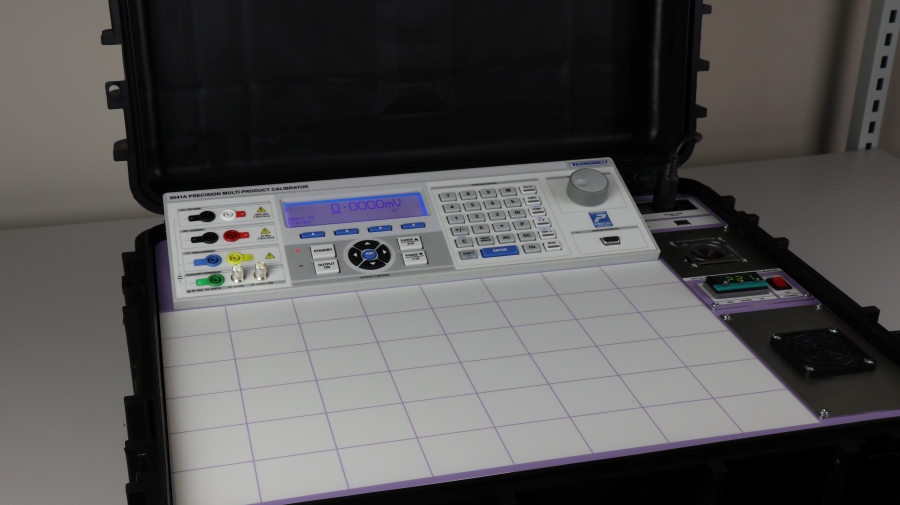

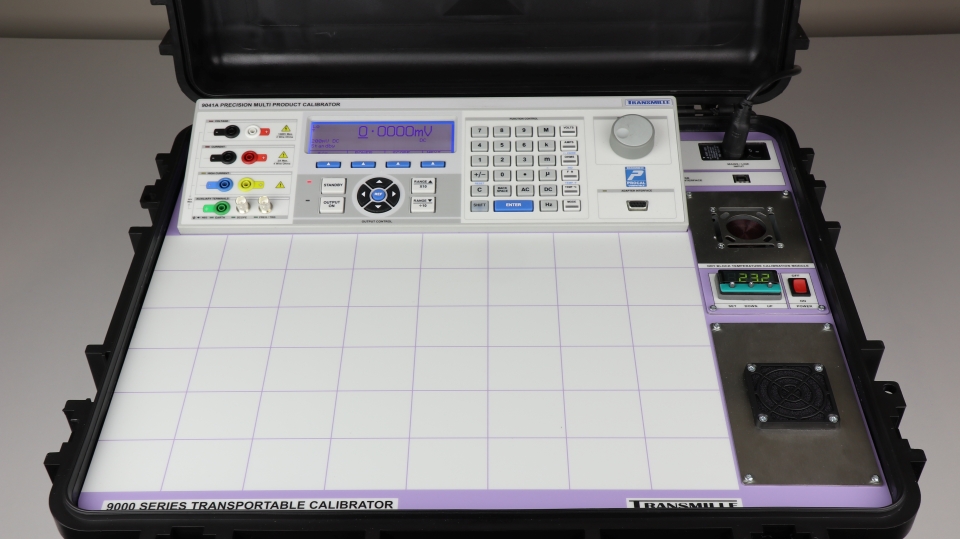

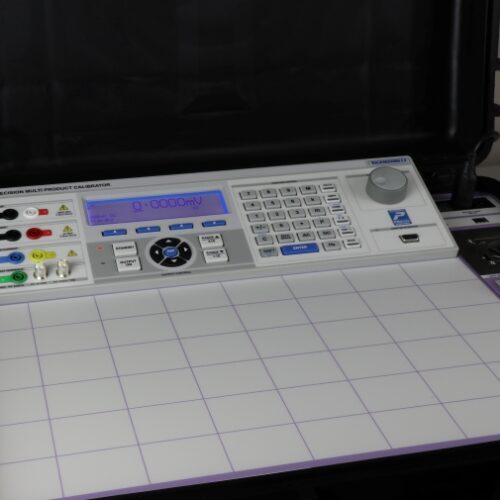

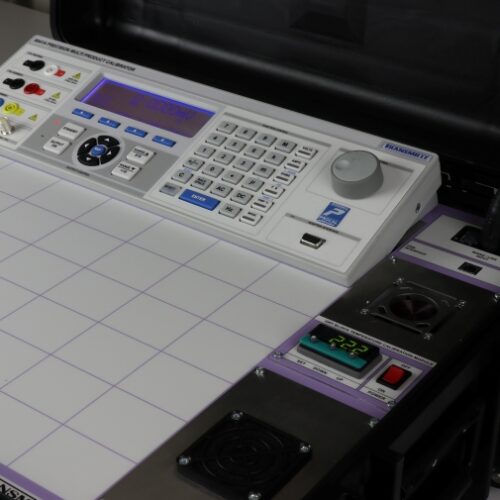

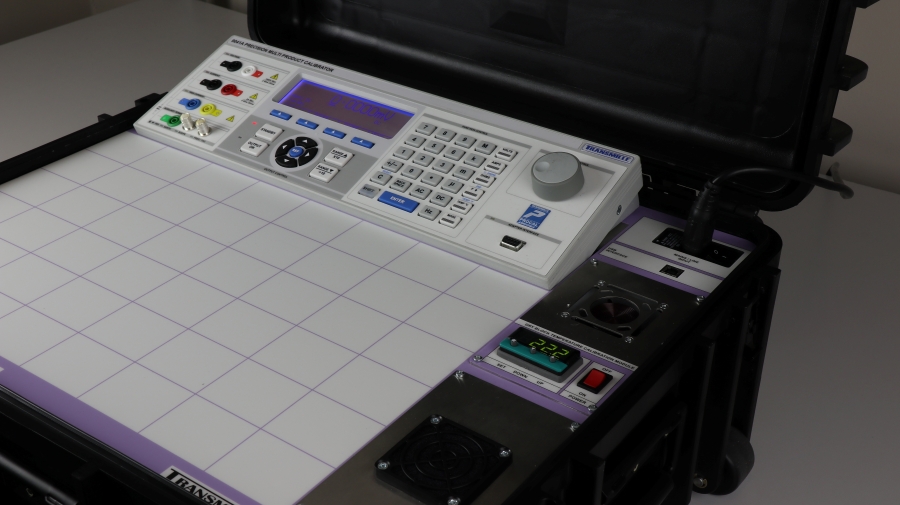

The 9000A series range of multiproduct calibrators offers the widest workload of any calibration system presently available. The 9000A series provides all of the functionality of the 3000A series multiproduct calibrator in a dedicated ruggedised case for the ultimate in on site calibration performance.
Using an innovative series of internal and external options, the 9000A provides workload coverage that no other manufacturer offers. With external options ranging from Thermocouple source and measurement through to a dedicated low current source, and internal options providing Oscilloscope calibration to 600MHz and calibration of power meters with power quality functionality.
The 9000A series is designed within industrial environments including offshore, aerospace and military applications. The rugged enclosure with integrated wheels and retractable handle lends itself to easy transportation to and from site. A fast warm-up time ensures calibration can be performed quickly and accurately.
WIDE WORKLOAD COVERAGE
The 9000A series offers the widest workload coverage of any multi-product calibrator, with the ability to calibrate 18 types of instrument. It has the power to drive older analogue instruments alongside the accuracy to calibrate modern digital instruments.
COST-EFFECTIVE CALIBRATION
The 9000A series features three models designed to suit every budget and accuracy requirement, and with a wide range of options that allow your calibrator to be tailored to meet your needs, the 3000 series is expandable for future needs.
RUGGED PORTABILITY
A dedicated transportable design that is ideal for industrial use. A fast warm-up time combined with the latest technology, all included in a rugged and portable design.
9041A Specifications
| DC Voltage Best 1 Year Total Accuracy |
0 – ±1000 V ±25 ppm |
| DC Current Best 1 Year Total Accuracy |
0 – ±30 A ±50 ppm |
| AC Voltage Best 1 Year Total Accuracy |
20 mV – 1000 V, 10 Hz – 500 kHz 0.04 % |
| AC Current Best 1 Year Total Accuracy |
20 µA – 30 A, 10 Hz – 10 kHz 0.06 % |
| Resistance (Passive) Best 1 Year Total Accuracy |
0 – 1 GOhms 40 ppm |
| Capacitance (Passive) Best 1 Year Total Accuracy |
10 nF – 10 µF 0.25 % |
| Frequency Best 1 Year Total Accuracy |
1 Hz – 100 MHz 1 ppm option |
| Temperature(Thermocouple) Best 1 Year Total Accuracy |
J / K / T / R / S / B / U / N / E / L / U / C/10 µV/°C ±0.09 °C |
| DRY BLOCK TEMPERATURE (OPTION) 1 Year Total Accuracy |
25°C – 200°C 1°C |
| BLACK BODY SOURCE TEMPERATURE (OPTION) 1 Year Total Accuracy |
25°C – 200°C 1°C |
